UI Transformer Core

Structure of UI Transformer Core:

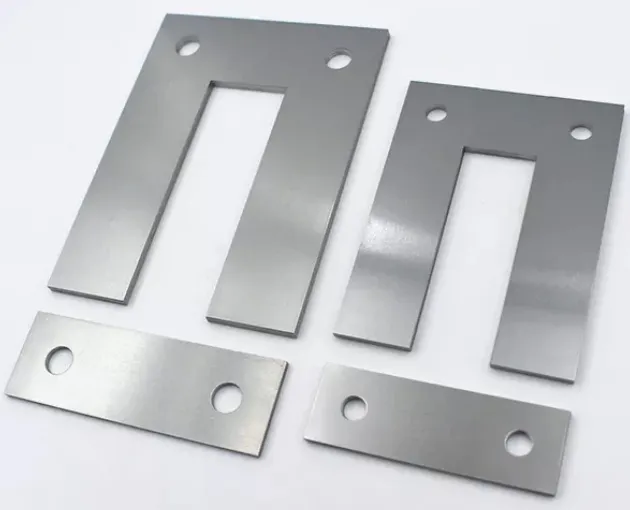

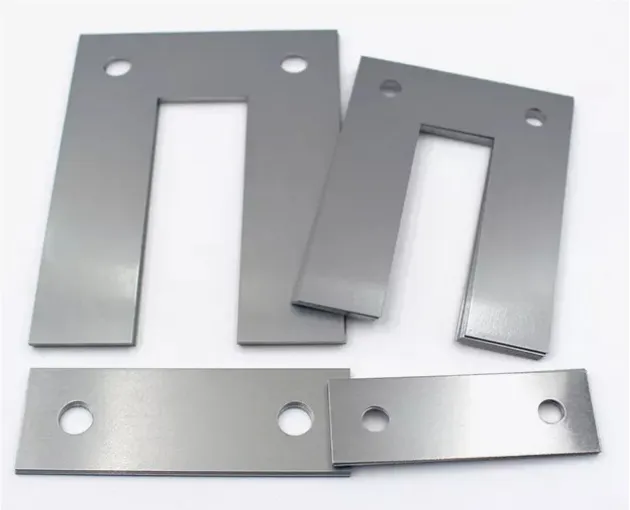

U-lamination: The “U” part has two vertical legs connected by a horizontal section, forming a U-shape. This part allows for the winding of coils around the legs of the “U” and provides a continuous magnetic path.

I-lamination: The “I” part is a single vertical leg that connects to the U-lamination, completing the magnetic circuit.

Assembly: The U and I laminations are stacked together to form a closed magnetic circuit, allowing for efficient magnetic flux transfer between the primary and secondary windings.

1. High Magnetic Efficiency: the UI core design allows for effective magnetic coupling between the windings, leading to high efficiency in energy transfer.

2. Reduced Magnetic Leakage: the closed magnetic circuit minimizes leakage flux, resulting in lower energy losses.

3. Compact Design: the UI configuration can be more compact than some other core designs, making it suitable for applications with space constraints.

4. Good Thermal Management: the design allows for effective heat dissipation.

5. Ease of Manufacturing: the shape allows for easier assembly, winding, and manufacturing processes.

6. Flexible Configuration: the UI transformer core can be stacked or arranged in various configurations, offering flexibility in transformer design.

UI transformer cores are widely used in various applications, including:

1. Transformer Manufacturing: primarily used in the design and manufacturing of single-phase transformers, three-phase transformers, and other transformers.

2. Inductors: applied in inductance applications, including filters and energy storage devices.

3. Choke Coils: employed in applications requiring either high inductance or current handling.

4. Switching Power Supplies: found in applications requiring efficient energy conversion and regulation.

1. High-quality Silicon Steel Materials

We maintain long-term and stable direct supply relationships of silicon steel wafers with many well-known domestic and foreign steel mills, such as Baosteel, WISCO, and Shoudu Steel. Thus we can fully ensure the best quality of silicon steel chips — the main material of the transformer core.

2. Advanced Automatic Production

Silicon steel adopts the international advanced automatic intelligent production line processing, with high processing precision, small burr, good flatness, and high efficiency, thus greatly shortening the delivery cycle.

3. Intelligent Manufacturing

No driving in the whole manufacturing process, and the intelligent workshop has constant temperature and humidity and remains dust-free. The whole process from raw materials to the finished iron core reduces the extra stress of silicon steel, reduces the manufacturing process coefficient of the iron core, and effectively ensures the product performance and quality.

4. Unique Processing Method

We adopt unique full-sequence lamination methods, advanced processes, and equipment, which have a remarkable effect on energy saving and environmental protection of products.

Besides, the clam parts are made of high strength steel, formed by numerical control bending. Compared with groove steel, they have mechanical strength, more accurate size and positioning, and smooth and beautiful appearance’s surname.

5. Complete Quality Assurance System

Quality is a core value at GNEE EC. We conduct factory acceptance testing (FAT), type testing, and third-party inspection tests to ensure excellence. We also conform to ISO 9001:2015, AS 9100, and AS 9003 quality management standards for all our transformer core products. And we have advanced CMM equipment to inspect final products.

6. Favorable Price

Our company’s product price is in the middle level of the industry and is famous for its high-cost performance. Welcome to consult us at any time and we will give you the most suitable quotation.

7. Timely Delivery Capability

GNEE EC has a complete logistics system. We can provide transportation services including container, break bulk, air transport, rail transport, warehousing, and international combined transport.

8. Professional Customization Solution

GNEE EC supports impeccable customization services. The functions of the product can be customized according to the drawings of customers. So far, we have provided high-quality customized solutions in many fields.

9. 24/7/365 Immediate Service & Support

No matter where or when it’s needed, the GNEE EC team is ready and available to help you. Transformer cores are what we do best and nothing can stop us from delivering top-tier service and support each time.

No matter your project is large or small, we hope to get your inquiry!
