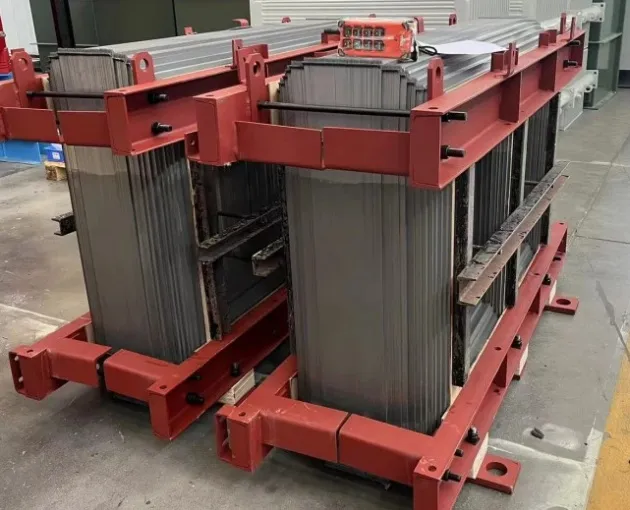

Shell-type Transformer Core

1. Enhanced Magnetic Coupling: The enclosed design of shell type cores allows for better magnetic coupling between the windings and the core, reducing magnetic leakage and enhancing efficiency.

2. Minimal Energy Loss: With a closed magnetic path, shell-type transformer cores typically have less energy loss than core-type transformer cores, making them ideal for high-efficiency applications.

3. Better Structural Stability: The shell-type design also provides enhanced mechanical strength and stability, protecting the windings and core from external stresses and vibrations.

4. Excellent Heat Dissipation Performance: The core allows for better heat dissipation as the windings are exposed to a larger surface area, ensuring that the transformer operates within optimal temperature limits. This feature extends the lifespan of the transformer and reduces maintenance frequency.

5. Lower Noise Levels: The design of shell type transformer cores can significantly reduce noise generated during operation due to the design’s stability and robustness. This feature is particularly beneficial in residential areas and sensitive environments where noise pollution is a concern.

6. Compatibility with Different Winding Arrangements: This design can accommodate various winding arrangements, which allows for versatility in design.

At GNEE EC, our shell type transformer cores are widely used in various industries, including:

1. Transformer Manufacturing: Widely used in the manufacturing of shell type transformers, power transformers, distribution transformers, etc.

2. Industrial Applications: Used in manufacturing plants and processing facilities where robust and reliable structures are required for operating machinery and equipment.

3. Power Distribution: Ideal for substations and grid applications, ensuring efficient energy transfer.

4. Transportation: Suitable for electric vehicles and railway systems, contributing to sustainable transport solutions.

5. Renewable Energy: Perfect for wind and solar energy systems, helping to convert and distribute clean energy effectively.

6. Noise-sensitive Environments: Suitable for use in urban areas, hospitals, and residential applications where noise levels must be kept to a minimum.

1. High-quality Materials: Sources high-quality silicon steel sheets to ensure high magnetic permeability and low loss of the core.

2. Advanced Technology: Advanced automated production lines and strict quality control systems are used to ensure product consistency and reliability.

3. Rich Experience: With many years of experience in transformer core production, we provide you with professional technical support and solutions.

4. Customization Option: According to your needs, our engineering team can tailor shell type transformer cores with different sizes, voltage ratings, and material specifications.

We are ready to provide innovative core solutions that drive energy efficiency and sustainability. Let us help you optimize your transformer performance and contribute to a greener future.
