Toroidal Transformer Core

GNEE EC is a leading toroidal transformer core supplier with 18+ years of history. We have advanced production equipment including high-precision slitting, automatic winding, vacuum annealing, and multi-wire cutting to ensure that the core is small, light and quiet, thereby improving electromagnetic performance (high permeability, low loss), energy efficiency performance (high efficiency, low no-load loss), thermal performance (low operating temperature), mechanical performance (quiet operation, compact structure), reliability, and application adaptability. In addition, our transformer toroidal cores can be made of a variety of materials such as nanocrystalline, amorphous metal, ferrite, and silicon steel, very suitable for different applications from low frequency to high frequency.

Gnee's toroidal transformer iron cores have a monthly output of more than 1 million pieces. These cores are well exported to more than 50 countries, including Vietnam, South Korea, Mexico, Spain, Turkey, etc., with good customer feedback.

Want to upgrade your power solution? Please tell us the core type, size, tolerance, specific material, and material thickness, special treatment, electromagnetic performance, and other requirements you need. Get a free quote now.

Tel/WhatsApp: +86 19949147586

Common Specifications & Processing Methods of Toroidal Transformer Cores from GNEE EC

At GNEE EC, we can manufacture premium toroidal transformer cores in a wide range of dimensions, also supporting different processing methods. Explore the table sheet below for detailed info now:

Toroidal Transformer Core Size

Common Toroidal Transformer Core Size Tolerance

Toroidal Transformer Core Size Tolerance (mm)
Outside Diameter(mm) Inside Diameter(mm) Height(mm)
OD △D ID △d △h
≤10 ±0.4 ≤10 ±0.30 ±0.3
≤25 ±0.5 ≤25 ±0.40 ±0.3
≤50 ±1.0 ≤50 ±0.50 ±0.3
≤80 ±1.0 ≤80 ±0.75 ±0.5
≤100 ±1.0 ≤100 ±0.80 ±0.5
≤160 ±2.0 ≤160 ±1.30 ±0.5
≤200 ±2.5 ≤200 ±1.50 ±0.5
≤320 ±2.5 ≤320 ±2.00 ±1.0
≤500 ±3.5 ≤500 ±2.50 ±1.0
≤800 ±5.0 ≤800 ±3.50 ±1.5
>800 ±7.5 >800 ±5.00 ±1.5

Different Toroidal Transformer Core Processing Methods

Toroidal Transformer Core Processing Methods
a No cutting, no varnishing
b No cutting, dipped in 1033 paint (heat resistance level 120℃)
c No cutting, dipped in 4526 paint (heat resistance level 180℃)
d Cutting, dipping in 4526 paint (heat resistance level 180℃)
e Multi-section cutting, dipped in 4526 paint (heat resistance level 180℃)
f Equipped with plastic shell (PP material, maximum temperature resistance 90℃)
g Wrapped polypropylene film (maximum temperature resistance 90°C)
h Green epoxy resin spraying (heat resistance level 180℃, usually coating thickness 0.15mm-0.50mm)
i Black epoxy resin spraying (180℃, usually coating thickness 0.03mm-0.25mm)

What Is Toroidal Transformer Core?

Toroidal transformer core is a type of magnetic core used in toroidal transformers, which are distinguished by their circular or ring-shaped (toroidal) design. Made from high-quality magnetic materials like silicon steel, this design ensures a continuous magnetic path, enhances magnetic coupling, and reduces magnetic leakage, performing more efficiently than traditional transformer iron cores. Nowadays, transformer toroidal cores are widely used in various electronic and power systems, especially where high efficiency, low electromagnetic interference (EMI), and compact design are required.

What Types of Transformer Toroidal Cores Can Gnee Provide?

At Gnee factory, we can produce toroid transformer cores in a wide range of materials, including:

Silicon Steel Toroidal Core

Ferrite Toroid Core

Amorphous Toroidal Core

Iron Powder Toroid Core

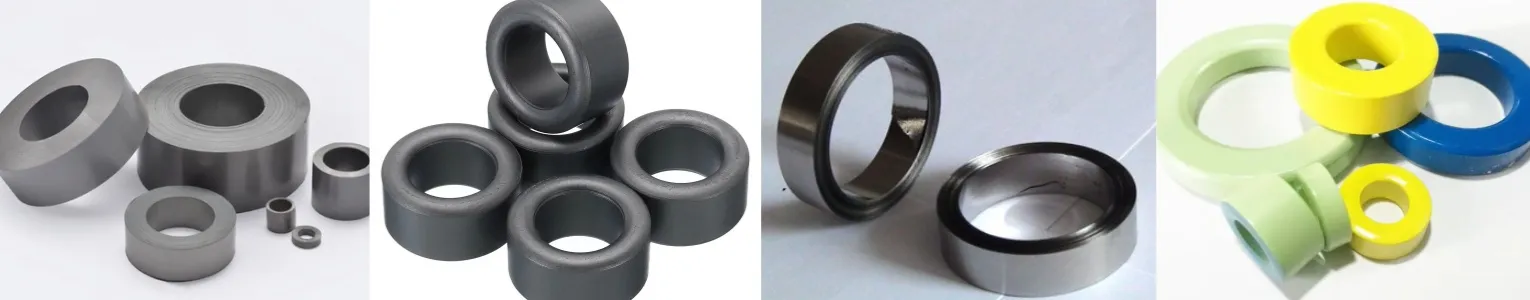

Different Types of Transformer Toroidal Cores

What Are the Advantages of Toroidal Transformer Cores Offered by GNEE EC?

Toroidal transformer cores provided by GNEE EC offer several significant advantages over traditional magnetic core shapes, including:

1. Superior Magnetic Efficiency: The toroidal shape provides a continuous closed-loop magnetic circuit, which significantly improves magnetic couplings and minimizes leakage, resulting in enhanced magnetic efficiency and minimal energy losses during operation.

2. Compact Design & Reduced Weight: The circular shape allows for a smaller footprint, perfect for space-constrained applications without compromising power output. Besides, these types of cores are approximately 50% lighter & take up at least 64% less volume in applications as compared to other kinds of transformer cores.

3. Reduced Electromagnetic Interference (EMI): The toroidal shape naturally encloses the windings, reducing electromagnetic interference (EMI) both from the transformer itself and external sources. This makes them ideal for sensitive electronic applications, where even slight EMI can cause signal degradation or malfunctions.

4. Low Vibration & Silent Operation: The tightly wound coils and absence of air gaps help to decrease hum and dampen the acoustic noise. It can enjoy quieter performance compared to traditional transformer cores, perfect for noise-sensitive environments such as audio systems.

5. Easy Usage: The integrated structure makes it easy to install and remove in electrical and electronic equipment.

6. Enhanced Energy Efficiency: By minimizing energy losses and enhancing performance, toroidal transformer cores contribute to lower electricity costs and improved overall system performance.

What Are the Main Applications of Transformer Toroidal Cores?

Transformer toroidal cores are widely used in various electrical and electronic applications, including:

– Toroidal Transformer Manufacturing

– Industrial Automation (for power supplies, control systems, and motor drives)

– Audio Equipment (for amplifiers, speakers, and high-fidelity sound systems)

– Medical Devices (for diagnostic equipment, imaging systems, and patient monitoring devices)

– Consumer Electronics (for chargers, adapters, and home appliances)

– Inductive Components (inductors and chokes)

Toroid Transformer Core Applications

Why Choose GNEE Toroidal Transformer Cores?

As a world-leading manufacturer and supplier of transformer cores, GNEE EC has accumulated 18 years of professional experience and grown to be an industry expert. We have built 5 production bases, introduced 30 sets of advanced production equipment, and equipped with 200 technicians, achieving an annual production capacity of 10 million tons. Our transformer cores are well exported to more than 50 countries, widely used in different electrical projects, covering more than 1000 transformer solutions. With strict quality control and professional technical support, more than 90% of our customers maintain long-term cooperation with us, and customer satisfaction continues to remain above 95%. Choose Gnee, you can obtain:

Superior Material Quality

Our transformer cores are crafted using premium silicon steel and other high-grade materials (like ferrities and amorphous metal for high-frequency applications), ensuring minimal energy loss and enhanced efficiency in power transmission.

Precision Manufacturing

We utilize advanced manufacturing techniques and automatic production processes to guarantee precise dimensions, small burrs, good flatness, and optimal performance. We gugarantee: lamination coefficient ≥96%, burr control ≤0.02mm, and air gap < 0.1%.

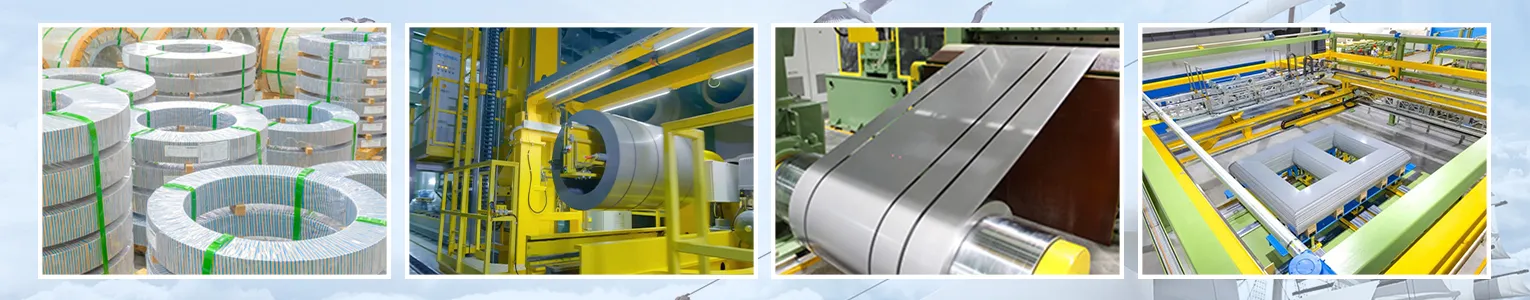

Production

Complete Quality Assurance System

Quality is a core value at GNEE EC. We possess 8 international certifications including ISO9001. More than that, we conduct factory acceptance testing (FAT), type testing, and third-party inspection tests to ensure excellence. The scope of the test includes:

Transformer Core Material Performance Test

Transformer Core Grounding Fault Test

Transformer Core Mechanical & Appearance Inspection

Insulation Performance Test

Electrical Performance Test

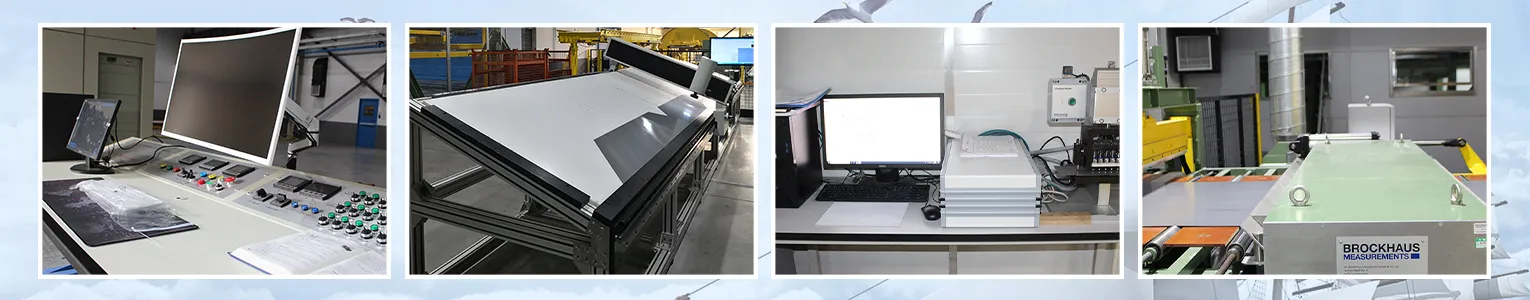

Strict Quality Control

Rich Successful Cooperation Cases

So far, we have established partnerships with electrical companies in more than 50 countries, providing over 1000+ global magnetic core solutions. What we are most proud of is that the longest cooperation period is over 17 years. You can trust Gnee’s strength to offer you the best project guidance plan.

Adequate Inventory Guarantee

Our factory guarantees strong production capacity. More than 30 sets of automatic machines can be put into more professional and faster iron core production, with a daily input of 320+ tons.

The standing inventory is maintained at more than 3 million sets, which ensures a 48-hour fast delivery service for general goods. Besides, the inventory turnover rate is controlled at 45 days, effectively supporting market demands and customer project plans.

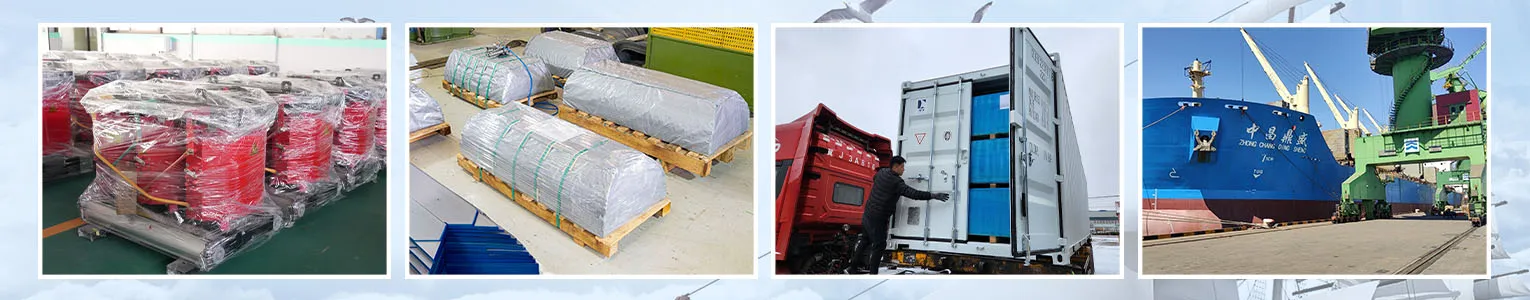

Package & Shippment

Professional Customization Solution

GNEE EC supports impeccable customization services to meet specific application requirements, enabling you to achieve the best performance for your electrical systems. The common customization options include: material, parameter, size, function, insulation, etc., to help your project be successfully realized. Feel free to communicate with us about your project drawings~

Gnee Team

Comprehensive Customer Service

Expert Technical Support: Our team of experienced engineers is able to provide professional consultation and technical assistance, helping you select the right core solution for your application.

Full Pre-sales & After-Sales Service: We provide full service support from pre-sales consultation to after-sales exception handling, fostering long-term relationships built on trust and service.

Customer Visit

No matter where or when it’s needed, the GNEE EC team is ready and available to help you. Transformer cores are what we do best and nothing can stop us from delivering top-tier service and support each time.

No matter your project is large or small, we hope to get your inquiry!
