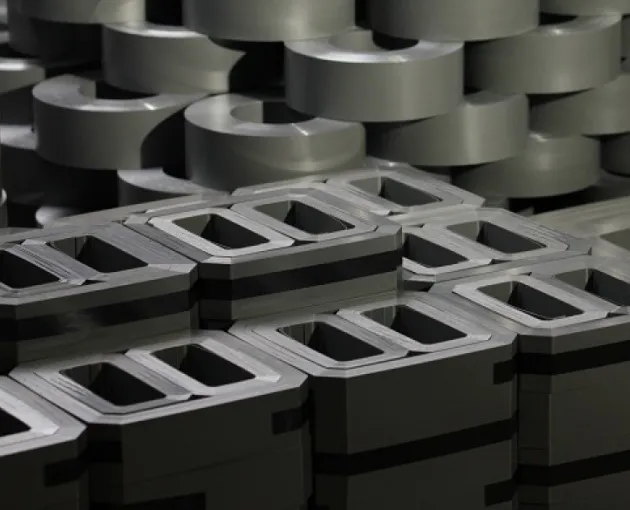

Silicon Steel Transformer Core-299
Silicon Steel Transformer Core-thumbnail-296
Silicon Steel Transformer Core-thumbnail-298
Silicon Steel Transformer Core-thumbnail-557
Silicon Steel Transformer Core-thumbnail-299

Silicon Steel Transformer Core

Looking for high-efficiency, low-loss transformer cores that enhance performance and reduce energy costs? GNEE EC offers premium silicon steel transformer cores engineered for superior magnetic properties, minimal hysteresis loss, and exceptional durability -- making them ideal for power distribution, industrial applications, renewable energy systems, and other electrical applications.

At Gnee, we uphold the highest quality standards in manufacturing silicon steel transformer cores. Our silicon steel materials are tested rigorously to ensure they meet or exceed industry benchmarks. They will undergo a series of production processes including precision cutting, automatic lamination, insulating protection, and annealing to ensure that each core has accurate size, smooth surface, complete insulation, and excellent magnetic properties. What's more, we are able to offer customizable solutions tailored to meet your specific needs.

Welcome to contact us for detailed parameters, samples, and customized services. Explore our solutions today and see the difference!

Tel/WhatsApp: +86 19949147586

Technical Specifications of Silicon Steel Transformer Cores in GNEE EC

Raw Material CRGO Silicon Steel (Cold Rolled Grain Oriented)

CRNGO Silicon Steel (Cold Rolled Non Grain Oriented)

Thicknesses 0.23-0.35MM (CRGO Silicon Steel)

0.35-0.5MM (CRNGO Silicon Steel)

Standards AISI, ASTM, GB, JIS, EN
Main Types Laminated, wound, toroidal, rectangular, EI, UI, C, etc
Coatings T2 Inorganic ( CRGO )

T4 Semi-organic (CRNGO)

Process Technology Annealing, Without Annealing
Packaging Methods Wooden Case/Wooden Pallet/Iron Rack (Selected According to Product Characteristics)
Customization Can be tailored to your voltage, frequency, and application requirements
Delivery Time 31-45days
Origin Henan, China

What Is Silicon Steel Transformer Core?

Silicon steel transformer core is a type of magnetic iron core made from silicon steel (also known as electrical steel), an alloy of iron with silicon. The addition of silicon can greatly enhance the steel’s electrical resistivity and reduce hysteresis losses, making it an ideal material for transformer cores. Nowadays, silicon steel has become a commonly used material to manufacture transformer cores, offering an incredibly efficient and cost-effective solution for electricity transmission worldwide.

What Type of Silicon Steel Transformer Cores Can Gnee Provide?

At Gnee factory, we can manufacture electrical steel transformer cores in a wide range of forms, offering diverse and efficient solutions for different customers. You can get:

According to Material:

This type of transformer core can be made in either CRGO or CRNGO materials. It can be divided into:

CRGO (Cold Rolled Grain Oriented Silicon Steel) Transformer Core: Made from grain oriented silicon steel to have a highly oriented crystalline structure, which allows for improved magnetic properties in a specific direction.

CRNGO (Cold Rolled Non Grain Oriented Silicon Steel) Transformer Core: Made from non grain oriented silicon steel to have similar magnetic properties in all directions.

According to Shape:

Silicon steel transformer cores can be produced in many different shapes, like rectangular, toroidal, etc., each featuring distinct application ranges.

Silicon Steel Toroidal Transformer Core: Formed in a toroidal (doughnut) shape, widely used in toroidal transformers and other transformers.

Silicon Steel EI Transformer Core: Formed in EI shape, widely used in EI transformers and other transformers.

Silicon Steel UI Transformer Core: Formed in ui shape, widely used in ui transformers and other transformers.

Silicon Steel C-shaped Transformer Core: Formed in C shape, widely used in C transformers and other transformers.

Silicon Steel Rectangular Transformer Core: Formed in a rectangular or square shape, widely used in various transformers.

According to the Manufacturing Process

Laminated Silicon Steel Transformer Core: This type of core is made by lamination stacking technology, which can minimize air gaps, reduce losses, and enhance overall transformer performance.

Wound Silicon Steel Transformer Core: This type of core is made by advanced winding technology, which can eliminate joint losses, reduce vibration, and provide exceptional magnetic flux uniformity.

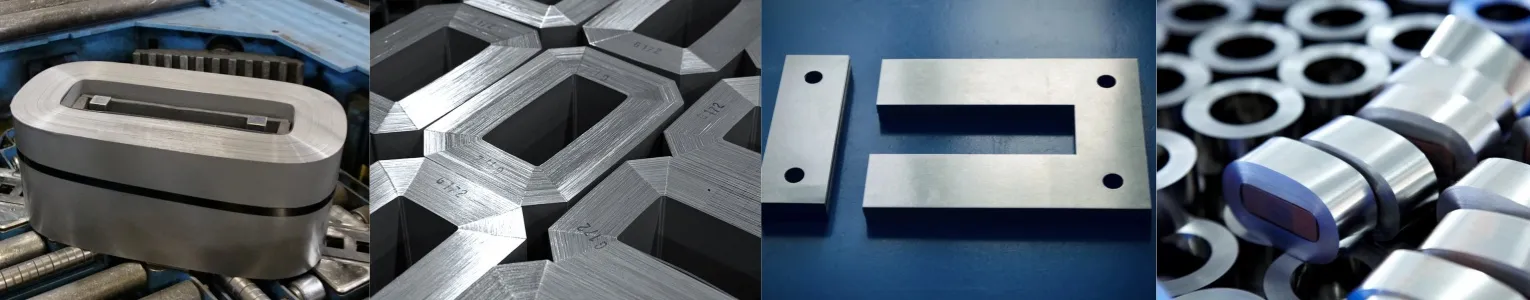

Different Silicon Steel Transformer Cores Offered by GNEE EC

What Are the Advantages of Silicon Steel Transformer Cores Offered by GNEE EC?

1. High Magnetic Permeability: Silicon steel offers significantly higher magnetic permeability compared to traditional iron cores. This means that it requires less energy to magnetize the core and is able to ensure optimal flux density, translating into improved efficiency and performance.

2. Ultra-low Core Losses: Using high-grade grain-oriented (GOES) & non-oriented (NOES) silicon steel and thin lamination technology can significantly lower hysteresis and eddy current losses. This enhances energy efficiency for long-term savings, making it ideal for power transformers and other high-efficiency applications.

3. Reduced Size and Weight: Transformer cores constructed from silicon steel tend to be lighter and more compact for the same power rating compared to conventional materials, making them easier to install, transport, and use in various applications without compromising performance.

4. Great Durability and Longevity: Our silicon steel transformer cores are resistant to aging, corrosion, and mechanical stress, able to withstand varying environmental conditions. This durability leads to longer life cycles for transformers, reducing replacement costs over time.

5. Improved Thermal Performance: Silicon steel transformer cores can maintain their magnetic properties over a wide temperature range, ensuring reliable operation under varying conditions.

6. Cost-Effective Solutions: Compared to other advanced materials like amorphous metal, the silicon steel transformer core remains cost-effective, making it a preferred choice for transformer manufacturers.

What Are the Main Applications of Gnee’s Silicon Steel Transformer Cores?

Our silicon steel transformer cores are suitable for a variety of applications, including:

1. Transformer Manufacturing: Extensively used in the manufacturing of various transformers, including silicon steel transformers, distribution transformers, audio transformers, instrument transformers, etc.

2. Power Generation: Essential in power plants for stepping up or stepping down voltage levels, ensuring efficient energy distribution.

3. Industrial Machinery: Commonly found in various industrial applications where efficient power management is necessary.

4. Renewable Energy Systems: Used in wind and solar inverters to maximize energy conversion efficiency.

5. Automotive and Electric Vehicles: Increasingly important in electric vehicle chargers and drive systems for enhanced performance.

6. Inductive Components: used in inductors, chokes, and reactors in power electronics and other applications requiring magnetic energy storage.

Silicon Steel Transformer Core Applications

Why Choose GNEE Silicon Steel Transformer Cores?

As a world-leading manufacturer and supplier of transformer cores, GNEE EC has accumulated 18 years of professional experience and grown to be an industry expert. We have built 5 production bases, introduced 30 sets of advanced production equipment, and equipped with 200 technicians, achieving an annual production capacity of 10 million tons. Our transformer cores are well exported to more than 50 countries, widely used in different electrical projects, covering more than 1000 transformer solutions. With strict quality control and professional technical support, more than 90% of our customers maintain long-term cooperation with us, and customer satisfaction continues to remain above 95%. Choose Gnee, you can obtain:

Superior Material Quality

Our transformer cores are crafted using premium silicon steels, ensuring minimal energy loss and enhanced efficiency in power transmission.

Precision Manufacturing

We utilize advanced manufacturing techniques and automatic production processes to guarantee precise dimensions, small burrs, good flatness, and optimal performance. We gugarantee: lamination coefficient ≥96%, burr control ≤0.02mm, and air gap < 0.1%.
Production

Complete Quality Assurance System

Quality is a core value at GNEE EC. We possess 8 international certifications including ISO9001. More than that, we conduct factory acceptance testing (FAT), type testing, and third-party inspection tests to ensure excellence. The scope of the test includes:

Transformer Core Material Performance Test

Transformer Core Grounding Fault Test

Transformer Core Mechanical & Appearance Inspection

Insulation Performance Test

Electrical Performance Test

Strict Quality Control

Rich Successful Cooperation Cases

So far, we have established partnerships with electrical companies in more than 50 countries, providing over 1000+ global magnetic core solutions. What we are most proud of is that the longest cooperation period is over 17 years. You can trust Gnee’s strength in offering you the best project guidance plan.

Adequate Inventory Guarantee

Our factory guarantees strong production capacity. More than 30 sets of automatic machines can be put into more professional and faster iron core production, with a daily input of 320+ tons.

The standing inventory is maintained at more than 3 million sets, which ensures a 48-hour fast delivery service for general goods. Besides, the inventory turnover rate is controlled at 45 days, effectively supporting market demands and customer project plans.

Package & Shippment

Professional Customization Solution

GNEE EC supports impeccable customization services to meet specific application requirements, enabling you to achieve the best performance for your electrical systems. The common customization options include: material, parameter, size, function, insulation, etc., to help your project be successfully realized. Feel free to communicate with us about your project drawings~

Gnee Team

Comprehensive Customer Service

Expert Technical Support: Our team of experienced engineers is able to provide professional consultation and technical assistance, helping you select the right core solution for your application.

Full Pre-sales & After-Sales Service: We provide full service support from pre-sales consultation to after-sales exception handling, fostering long-term relationships built on trust and service.

Customer Visit

No matter where or when it’s needed, the GNEE EC team is ready and available to help you. Transformer cores are what we do best and nothing can stop us from delivering top-tier service and support each time.

No matter your project is large or small, we hope to get your inquiry!
