How Do You Calculate the Size of a Transformer Core?

In the realm of electrical engineering, the transformer stands as an unsung hero, silently adapting voltage levels to meet the diverse needs of our modern world. Central to its efficacy is the size of its core; a parameter that significantly influences both efficiency and operational performance of transformers. Therefore, the core size must be appropriately determined to ensure that the transformer can handle the required power levels while minimizing losses. Then, how to determine the size of a transformer core? This blog will provide a comprehensive guide on how to calculate transformer core size, including the necessary formulas and considerations.

Understanding Transformer Core Basics

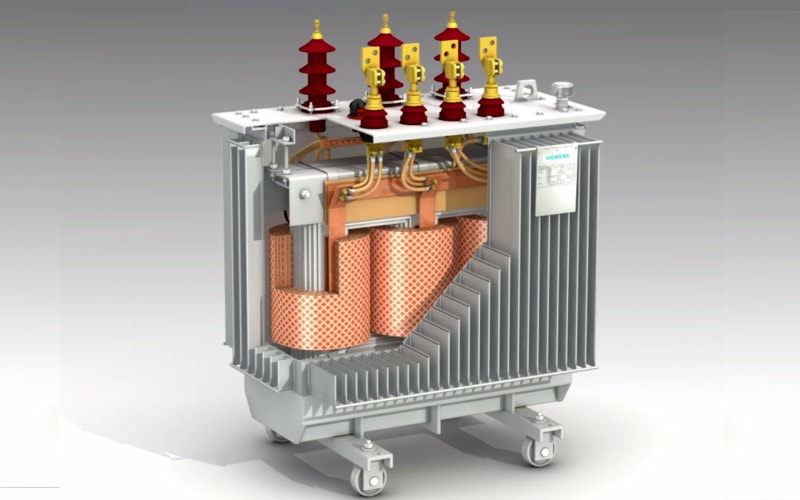

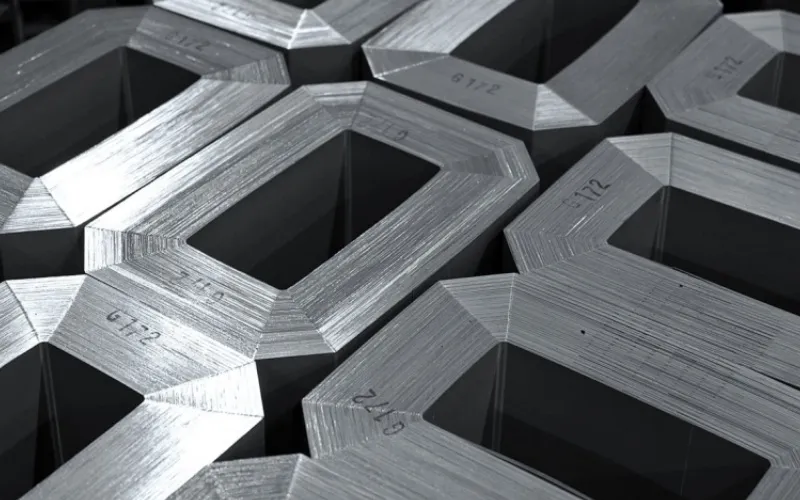

The transformer core is typically made of ferromagnetic material, such as iron or silicon steel, which enhances its magnetic properties and reduces energy losses. The core serves as a pathway for magnetic flux, allowing the transformer to transfer energy between the primary and secondary windings.

Does the Transformer Core Size Matter?

Yes, it matters a lot.

1. Determining the core size is a crucial step in transformer design, as it directly affects the efficiency, performance, and overall functionality of the transformer.

2. The current output of a transformer is determined by the cross-sectional area of the core, the frequency of the input voltage, and the number of turns in the secondary coil. The cross-sectional area of the core determines the amount of magnetic flux that can be produced.

3. The types of transformer core size and the ampere output are directly related. The larger the core, the more current the transformer can carry. The smaller the core, the less current the transformer can carry.

Factors Affecting Transformer Core Size

The core size of a transformer is influenced by several key factors that must be considered during the design process. They include:

1. Core Material

The type of core material (e.g., silicon steel, ferrite) affects magnetic permeability and losses. Selecting the appropriate core material is essential for achieving the desired core size.

2. Magnetic Flux Density

The magnetic flux density affects the transformer core’s saturation level, which determines its ability to handle maximum voltage levels without losing performance or overheating.

To calculate the core size, engineers need to determine the acceptable magnetic flux density based on the transformer’s intended use and the materials used for its core.

3. Winding Current

The winding current affects the transformer core calculation since it determines the required cross-sectional area of the core to handle the magnetic field generated by the current.

4. Core Losses

Core losses, including hysteresis and eddy current losses, affect the overall efficiency of the transformer. Calculating the core size involves accounting for these losses and selecting a core material with minimal losses to enhance efficiency.

5. Temperature Rise

Temperature rise refers to the increase in temperature that occurs during transformer operation. To prevent this, the core size must be appropriately calculated, ensuring efficient heat dissipation and maintaining the transformer’s optimal operating temperature.

How to Calculate Transformer Core Size Correctly?

The process of calculating the transformer core size involves several steps. Let’s discuss each step in detail:

1. Determine the Design Parameters

To start calculating the core size, it is crucial to define the design parameters of the transformer. These parameters include the transformer’s power rating, primary and secondary voltages, frequency, and desired level of efficiency. Additionally, understanding any specific requirements or constraints imposed by the application or industry standards is essential.

2. Calculate the Core Area

To calculate the core area, engineers should use the following formula:

A = P×10^6/(4.44×B×f×T×K)

Where:

A = Core area in square centimeters (cm²)

P = Power rating of the transformer in kilovolt-amperes (kVA)

B = Magnetic flux density in Tesla (T)

f = Frequency in Hertz (Hz)

T = Temperature rise in degrees Celsius (°C)

K = Coefficient taking into account core losses and transformer type (typically ranging from 0.9 to 1.4)

Generally, calculating the core area provides an initial estimate of the core size required to fulfill the given design parameters.

Conclusion

Calculating the transformer core size is a crucial factor in designing efficient transformers. By understanding the key parameters and using the appropriate formulas, you can estimate the core size needed for your specific application. Proper core sizing is essential for optimizing transformer performance and achieving the desired electrical characteristics.
