A Comprehensive Guide to Winding Transformer Cores

Transformer cores are the unsung heroes of electrical systems, serving as the backbone of energy transfer in most electrical devices. Whether in power transmission lines, industrial equipment, or household electronics, transformers rely on these cores to enable the efficient conversion of electrical energy from one voltage level to another. Without transformer cores, the vast networks of electricity that power modern society would not be possible. Nevertheless, winding transformer cores are a critical process in the creation of transformers to fulfill that purpose — ensuring optimal performance and efficient energy transfer. As an expert in this field, Gnee has a lot to say on how to correctly wind transformer cores to build efficient and reliable electrical devices.

Definition and Purpose of Winding Transformer Cores

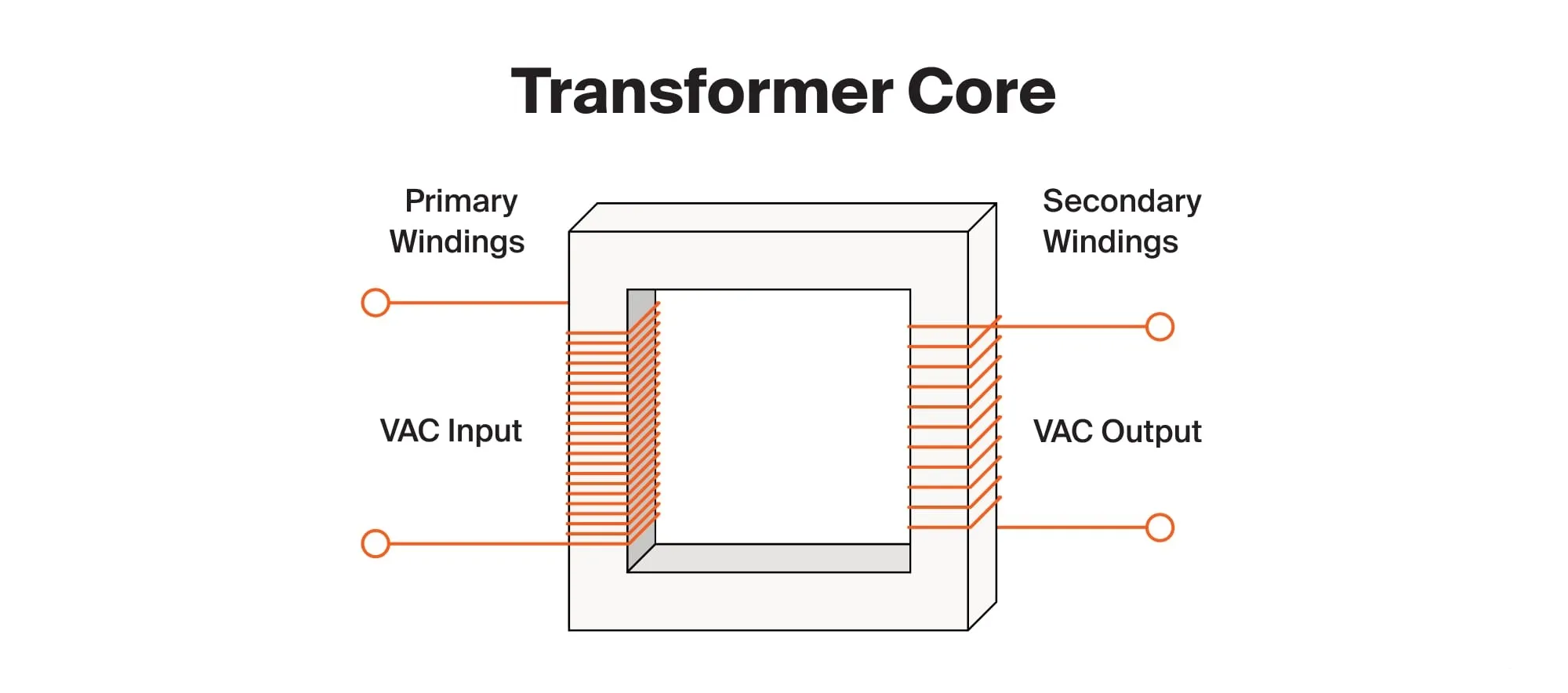

At its core, the purpose of winding transformer cores is to generate the magnetic field necessary for the transformer’s operation. The coils, typically copper or aluminum, are wound around the core in a specific manner to create a consistent magnetic field when an alternating current is passed through them.

The current flowing through the primary coil generates a magnetic field in the core, which then induces a voltage in the secondary coil through electromagnetic induction. This electromagnetic process enables the transformer to either step up or step down voltage levels.

The number of turns in each coil is a crucial factor in determining the voltage ratio, which is why the winding process is so precise. Too few or too many turns can lead to inefficient energy transfer or insufficient voltage conversion, highlighting the importance of accurate and expert winding techniques.

Materials and Tools Required Before Winding Transformer Cores

To wind transformer cores, you need to prepare the following materials:

Transformer Core: Choose a core made of appropriate material (e.g., silicon steel, ferrite, or amorphous metal) and size for your application.

Conductive Wire: Typically copper or aluminum, chosen for its high electrical conductivity. Select the suitable gauge for the primary and secondary windings.

Insulation Material: Essential for preventing short circuits between windings; materials include insulating paper, enamel, tape, varnish, or mylar sheets.

Winding Jig or Machine: To facilitate uniform winding; this can range from a simple hand-held tool to a fully automated machine.

Detail Exploration: Step-by-Step Guide to Winding Transformer Cores

Step 1: Prepare the Core

Choose the Core: Select the appropriate type of core for your transformer’s specifications.

Clean the Core: Ensure the transformer core is free from dust, dirt, and grease. A clean surface helps prevent insulation failure.

Apply Insulation: Wrap the core with insulating material to prevent electrical contact between the windings and the core.

Step 2: Determine Winding Specifications

Calculate Turns: Determine the number of turns required for both the primary and secondary windings based on the desired voltage ratios and transformer specifications.

Select Wire Gauge: Choose the appropriate wire gauge based on the current rating and thermal considerations.

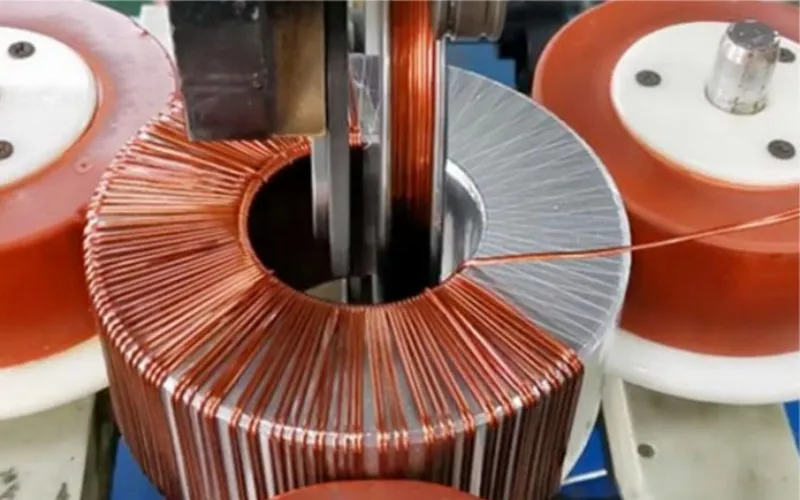

Step 3: Start Winding the Primary Coil

Secure the Core: Place the core in the winding jig or machine, ensuring it is stable.

Attach the Wire: Secure one end of the wire to the core using tape or a similar method.

Begin Winding: Start winding the wire around the core evenly, maintaining consistent tension. Ensure that the turns are closely packed without overlapping.

Count Turns: Keep track of the number of turns as you wind. You can use a counter or note it manually.

Step 4: Insulate the Primary Winding

Apply Insulation: Once the primary winding is complete, apply insulation material over the winding to prevent short circuits with the secondary winding.

Secure the Wire: Cut the wire and secure the end with tape or insulation.

Step 5: Wind the Secondary Coil

Attach the Wire: Similar to the primary winding, secure one end of the secondary wire to the core.

Start Winding: Wind the secondary wire around the core, ensuring it is tightly wound and evenly spaced. Count the turns as you go.

Insulate the Secondary Winding: Once the secondary winding is complete, apply insulation over it, just like with the primary winding.

Step 6: Finishing Touches

Secure the Ends: Once both windings are complete, securely attach the ends of the wires and apply additional insulation as necessary.

Testing: Use a multimeter to check continuity and verify that there are no short circuits between the windings. This testing ensures the integrity of the transformer core before it goes into operation.

Step 7: Final Assembly

Secure the Windings: Ensure all windings are securely fastened and insulated.

Encapsulate (Optional): For added protection, consider enclosing the core within the transformer to shield it from environmental factors and potential physical damage.

Best Practices to Ensure Highly Efficient Transformer Cores

When winding, you should always follow these guidelines:

Maintain Consistency: Keep the winding tension consistent to avoid loose turns, which can lead to increased losses.

Count Carefully: Accurate turn counting is critical for achieving the correct turn ratio, which affects the transformer’s performance.

Use Quality Materials: Selecting high-quality materials for both wire and insulation can significantly enhance the reliability and efficiency of the transformer.

Conclusion

Winding transformer cores is a meticulous process that requires attention to detail and adherence to specific techniques. By following the steps outlined in this guide, you can successfully wind transformer cores that meet your electrical requirements. Whether you are a hobbyist or a professional, mastering the art of winding transformer cores will enhance your understanding of electrical systems and improve your project outcomes, contributing to a more sustainable and efficient future.
