What is Transformer Core?

Transformers are crucial components in electrical systems, serving the fundamental purpose of converting electrical energy from one voltage level to another. At the heart of every transformer lies the transformer core, a key element that plays a vital role in the operation and efficiency of the device. In this blog, we will explore the intricacies of transformer core, exploring its definition, function, properties, types, and significance in the realm of electrical engineering.

What is a Transformer Core?

Transformer core, also called the magnetic core, is a fundamental component in the transformer, playing a critical role in the device’s functionality by providing a path for magnetic flux generated by the electrical current in the windings.

A transformer core usually comprises an iron core (magnetic core) and a coil. The coil has two or more windings: the winding connected to the power supply is the primary coil, and the remaining windings are secondary coils.

Generally, the transformer core is designed to conduct magnetic flux with minimal energy loss. They are usually made of materials with high magnetic permeability (like silicon steel), which allows them to efficiently guide magnetic lines of force.

How does the Transformer Core Work?

A transformer core functions based on the principles of electromagnetic induction, where the flow of an alternating current (AC) through the primary winding generates a time-varying magnetic field around the winding. This magnetic field, in turn, induces a magnetic flux in the core, which is a crucial element in the transformer’s ability to transfer electrical energy between circuits. The induced magnetic flux is guided through the core, which is designed to provide a continuous and low-reluctance path for this flux. This pathway is essential for linking the primary and secondary windings of the transformer efficiently, ensuring that the energy transfer is both effective and minimally lossy.

What are the Functions of Transformer Core?

The transformer core serves several essential functions:

1. Conduct Magnetic Flux: The core serves as a low reluctance path for the magnetic field generated by the primary winding. This efficiently transfers energy to the secondary winding through the principle of electromagnetic induction.

2. Transform Voltage: By varying the number of turns in the primary and secondary coils relative to each other, the transformer core enables the conversion of voltages from one level to another (step-up or step-down transformation).

3. Reduce Magnetic Losses: By providing a low-reluctance path for the magnetic flux, the core minimizes losses due to stray magnetic fields and improves the overall efficiency of the transformer.

4. Support Windings: The core physically supports the windings and maintains their alignment, ensuring reliable operation and reducing mechanical stresses.

How is the Transformer Core Manufactured?

The manufacturing of the transformer core includes the following main steps:

1. Material Preparation: Select high-quality magnetic materials (take silicon steel sheets as an example), ensuring that they have good magnetic conductivity and low iron loss characteristics.

2. Cutting and Stacking: Cut the silicon steel sheets according to the requirements of the transformer and stack them layer by layer, forming the iron core column and the iron yoke. During the stacking process, it is necessary to ensure that there is no gap between the silicon steel sheets to improve the heat transfer and magnetic transfer effects.

3. Welding: Use a special welding process to fix the silicon steel sheets together to form an overall core structure. The welding process needs to pay attention to controlling the temperature and welding time to ensure the welding quality.

4. Threading Cores / Setting Windings: Depending on the transformer design, the windings are threaded through the core column or wrapped on the core.

5. Inspecting and Handling: Check the flatness, gap, and insulation condition of the core, and make corrections and supplement insulation treatment if necessary.

6. Assembling and Packaging: Assemble the core, winding, clamps, and other components into a complete transformer core assembly, and then packed to ensure good electrical insulation and mechanical stability.

Advantages and Disadvantages of Transformer Cores

What are the Different Types of Transformer Cores?

Depending on the construction and shape, there are several main transformer cores in the market. Let’s explore them one by one.

Core-type Transformer Cores: Rectangular or square core with coils wrapped around its limbs. This arrangement allows for easier insulation and cooling, as the windings are more accessible and can be adequately separated and ventilated.

Applications: well-suited for high-voltage applications, such as in power transmission and large power distribution systems.

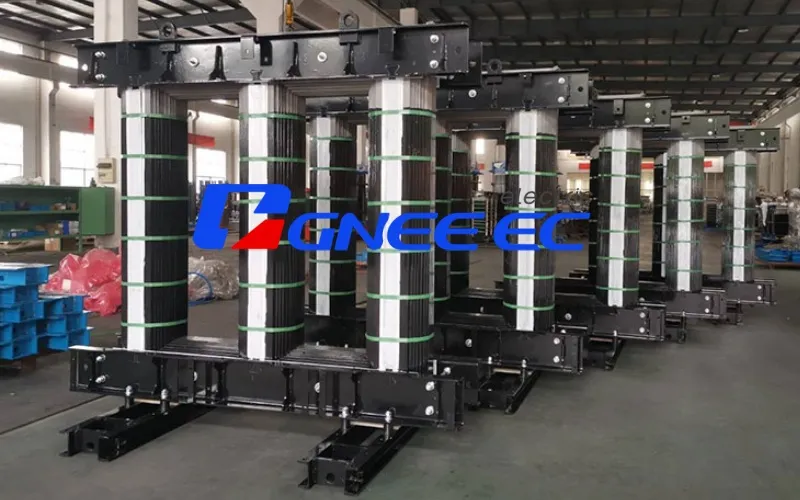

Shell-type Transformer Cores: characterized by a design where the core surrounds the windings, providing better magnetic coupling and reduced leakage flux.

Applications: particularly suitable for low-voltage and high-current applications, such as furnace transformers, welding transformers, and certain types of distribution transformers where durability and cooling efficiency are critical.

Laminated Transformer Cores: made from thin sheets of electrical steel, stacked and insulated from each other. The laminations are oriented to minimize eddy current losses.

Application: Commonly used in power transformers, distribution transformers, and various industrial applications.

Toroidal Transformer Cores: are ring-shaped and made from a continuous strip of magnetic material. They have no air gaps, which reduces magnetic losses.

Application: Used in high-frequency transformers, inductors, and applications where space is limited.

EI Transformer Cores: composed of E-shaped and I-shaped laminations that interlock to form a closed magnetic circuit. This design allows for efficient magnetic flux paths.

Application: Widely used in power transformers and inductors.

C Transformer Cores: similar to E-I cores but consist of two C-shaped laminations. They are designed to reduce air gaps and improve magnetic coupling.

Application: Used in specialized transformers where high efficiency is required.

H Transformer Cores: uses two C-shaped cores combined to form an H-shaped structure. This design creates an efficient magnetic path with low magnetic leakage, as the magnetic flux is well-contained within the core.

Applications: commonly used in high-power transformer applications where efficient energy transfer and compact size are essential.

Importance of Transformer Cores in Electrical Engineering

1. Efficiency

The design and materials used in the transformer core significantly impact the overall efficiency of the transformer. An efficient core design reduces energy losses, allowing transformers to operate effectively with minimal waste.

2. Performance

The core’s magnetic properties directly influence the performance of the transformer. A well-designed core ensures that the transformer can handle varying loads and conditions without compromising efficiency or reliability.

3. Reliability

The structural integrity of the transformer core is vital for the long-term operation of the transformer. A robust core design minimizes mechanical stresses and enhances the overall reliability of the transformer.

Conclusion

The transformer core is a critical component that directly influences the performance and efficiency of transformers. Its ability to concentrate magnetic flux, reduce losses, and support windings makes it essential for efficient energy transfer. Understanding the operational principles, designs, and types of transformer cores is crucial for engineers and designers involved in transformer technology.
