How to Choose the Right Transformer Cores for Your Electrical Projects?

It is clear that transformer core is the crucial component of a transformer, acting as the conduit for electromagnetic energy transfer between the primary and secondary windings. This central piece of material serves to guide the magnetic flux generated by the alternating current passing through the transformer windings, ultimately allowing for efficient voltage transformation. Without a well-designed core, the transformer would be ineffective, with losses in energy, excessive heat, and potentially even failure of the transformer itself. Therefore, from multiple aspects, it is necessary for engineers to put effort into choosing the right transformer cores for their important electrical projects. Several factors will be involved in selecting suitable transformer cores to maximize their efficiency in electrical projects. Stay informed about them in this blog.

1. Understand the Core Material

The material used for constructing the transformer core plays a significant role in determining its efficiency and performance. Common transformer core materials include:

Silicon Steel (Electrical Steel): The most widely used material due to its high magnetic permeability and low hysteresis loss.

Amorphous Metal: Offers lower core losses compared to silicon steel, making it ideal for high-efficiency transformers. However, it is more expensive and mechanically brittle.

Ferrite: Used in high-frequency applications (e.g., switch-mode power supplies) due to its high resistivity and low eddy current losses.

Nanocrystalline Alloys: Provide excellent magnetic properties with very low losses, suitable for high-performance transformers but at a higher cost.

2. Determine the Core Shape and Design

The geometry of the transformer core affects magnetic flux distribution and losses. Several core configurations are popular in the market:

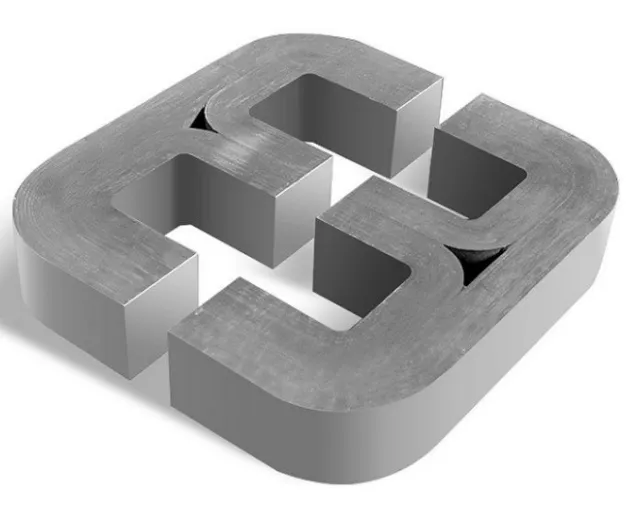

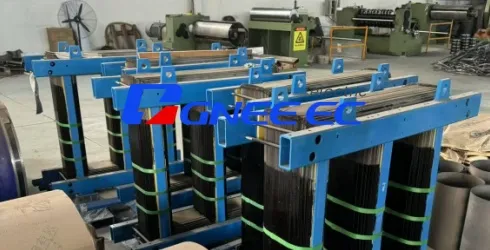

E-I Core: Made from stacked E-shaped and I-shaped laminations. EI transformer core offers great simplicity and effectiveness in reducing eddy current losses, widely used in power transformers.

Ring Transformer Core: Offers better efficiency and minimal magnetic flux leakage with a closed magnetic path, ideal for compact and high-performance applications.

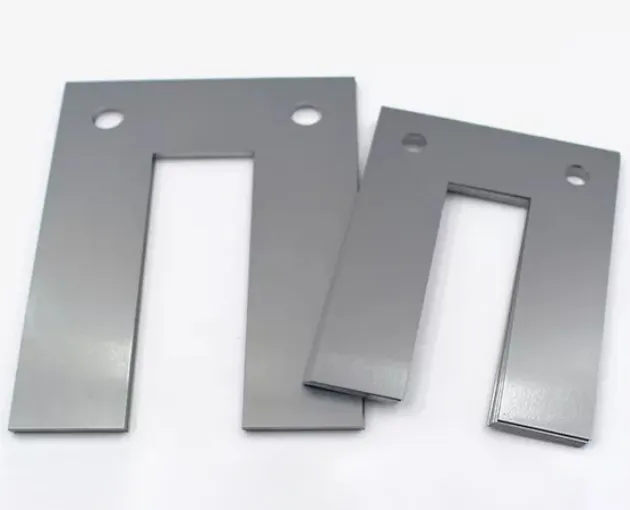

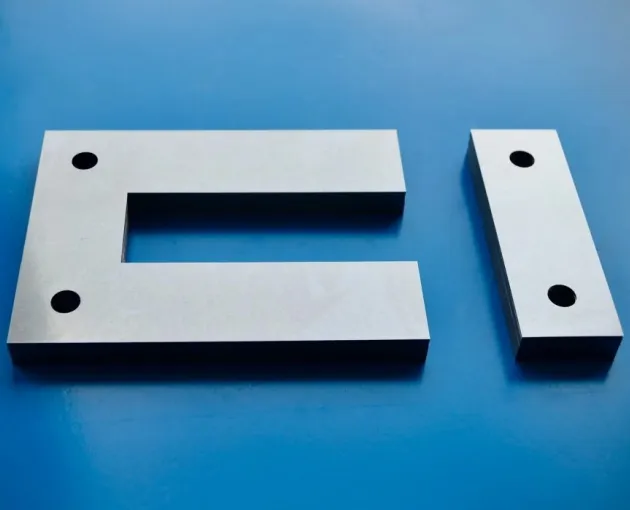

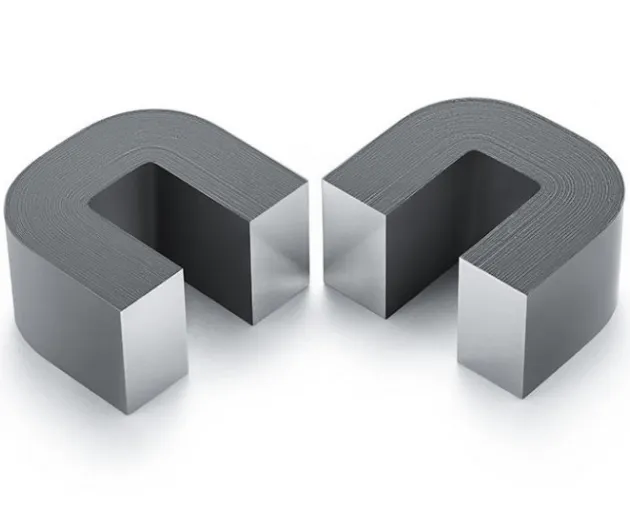

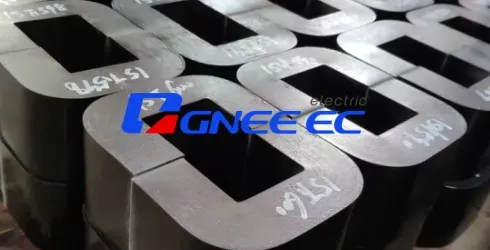

C-core and U-core: are alternative designs that offer specific advantages in terms of magnetic performance and ease of manufacturing. C transformer core and U transformer core are often used in specialized transformer applications.

3. Consider the Operating Frequency

The operating frequency of the transformer is a crucial factor in core selection. Different transformers perform better at specific core materials. For example:

Low-frequency Transformers: For transformers operating at low frequencies (e.g., 50/60 Hz), silicon steel or amorphous steel are typically preferred due to their efficiency and performance characteristics.

High-frequency Transformers: For applications requiring high-frequency operation (e.g., above 10 kHz), ferrite cores are often used due to their low losses at these frequencies.

Choosing a core that matches the operating frequency will help ensure efficient and reliable transformer performance.

4. Evaluate Core Size and Weight

The size and weight of the transformer core are also important considerations, especially in applications where space is limited. Engineers must remember the following guidelines:

Efficiency vs. Size: Smaller cores may offer less efficiency due to increased saturation and losses. Engineers often have to strike a balance between size and performance to meet design specifications.

Cooling Requirements: Larger cores typically dissipate heat better, so size can also impact efficiency and thermal management.

5. Analyze Efficiency and Losses

Transformer efficiency will be reflected by the losses of the core during operation. For example, an ideal core will significantly reduce losses and enhance the efficiency of transformers. Therefore, when choosing transformer core, it is essential to analyze the expected losses and select a core that minimizes these losses while meeting performance requirements.

6. Assess Cost and Availability

Although the price does not play a decisive role, it does play a part. Your budget for the electrical project and the transformer core price on the market at that time will greatly influence your final decision. As far as the core is concerned, the materials utilized are major. While high-performance materials like amorphous metal and nanocrystalline alloys offer superior efficiency, they come at a higher cost. Assess the application requirements — industrial power transformers may prioritize cost-effectiveness, while medical or aerospace applications may justify premium materials.

Conclusion

Selecting the right transformer core is a crucial step in ensuring the efficiency, performance, and longevity of any transformer. However, it is a challenging process that involves balancing materials, core design, operating conditions, and cost. By carefully evaluating these factors, engineers can select an optimal core that ensures efficiency, reliability, and longevity for the intended application. Correspondingly, the wise decision made after weighing those factors will lead to a more effective transformer core solution and ultimately benefit the end-users and the overall electrical system. Still having any trouble? Get help from GNEE EC’s experts.
