Unlocking the Secrets of Silicon Steel Transformer Cores

Transformers are essential components in electrical power systems, enabling efficient voltage conversion and energy transmission. The transformer core, a central component of transformers, plays a vital role in minimizing energy losses, enhancing performance, and ensuring the reliability of energy distribution networks. Among various transformer core materials, the silicon steel transformer core stands out as a representative that is designed to efficiently handle the magnetic flux created by alternating currents and is instrumental in ensuring that transformers function optimally with minimal energy losses.

What is a Silicon Steel Transformer Core?

A silicon steel transformer core is a type of magnetic core made from silicon steel (also known as lamination steel) that contains silicon additions, typically ranging from 1% to 4.5%. This addition of silicon improves the magnetic properties of the steel, making it highly suitable for use in transformer cores.

The Role of Silicon Steel: Why It’s the Ideal Material

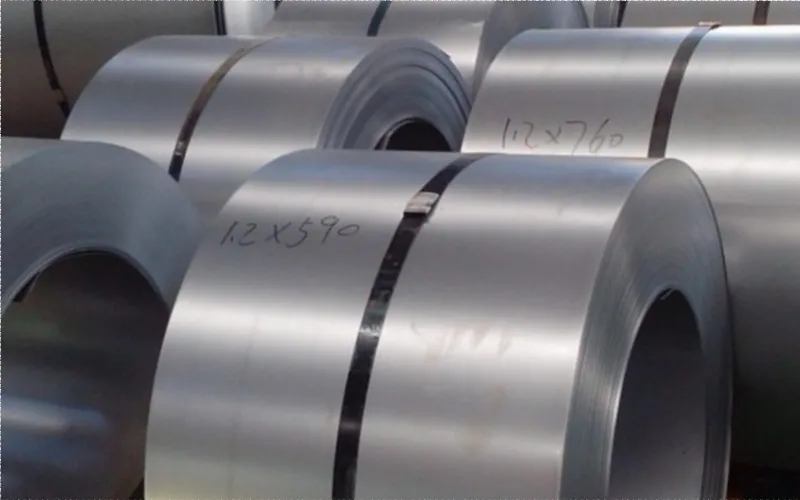

Silicon steel, also known as electrical steel, is the most commonly used material in the construction of transformer cores. This material is specifically engineered to exhibit low core loss, high magnetic permeability, and the ability to withstand the mechanical stresses and heat generated by the electrical currents.

The Chemistry of Silicon Steel: Understanding Its Composition

The composition of silicon steel, which involves a combination of iron and silicon, optimizes the material’s ability to guide magnetic flux with minimal resistance. Adding a certain amount of silicon (approximately 0.5% to 6.5%) helps to increase the electrical resistivity of the steel and improves its magnetic properties. Generally, the higher the silicon content, the lower the core losses due to reduced eddy currents and hysteresis.

Magnetic Properties: How Silicon Steel Affects Efficiency

The magnetic properties of silicon steel are critical to its function in transformer cores.

One of the most important properties is permeability, which refers to the ability of the material to conduct magnetic flux. Silicon steel’s high magnetic permeability ensures that the transformer core can handle large amounts of magnetic flux without saturating, which could lead to significant energy losses.

Another important factor is hysteresis loss, which is the energy lost as the magnetic field alternates direction in response to the alternating current (AC). Silicon steel is designed to minimize hysteresis loss by optimizing its molecular structure to allow for faster realignment of magnetic domains. This results in lower energy waste and improved transformer efficiency.

Additionally, temperature stability is a key characteristic of silicon steel. As the core material heats up due to current flow, it must maintain its magnetic properties to ensure the continued efficient operation of the transformer. Silicon steel is capable of performing well at high temperatures, which is crucial for the long-term reliability of transformers in industrial and high-power applications.

Types of Silicon Steel Used in Transformer Cores

Grain-Oriented Silicon Steel: A Key to High-efficiency Transformers

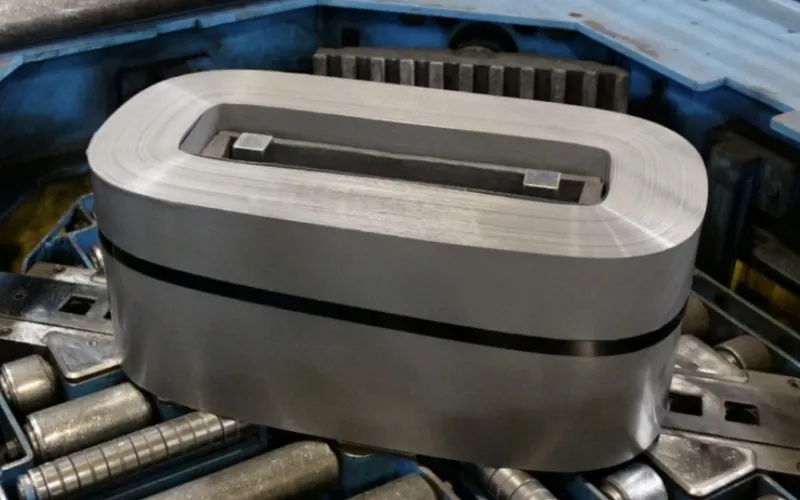

Grain-oriented silicon steel (GO) is one of the most widely used materials in the production of transformer cores, particularly for high-efficiency applications. As the name suggests, GO silicon steel is processed to create an alignment of its grains in a specific direction, which greatly enhances its magnetic properties along that axis. This alignment allows for the optimized flow of magnetic flux, reducing losses and improving overall performance.

Non-Grain Oriented Silicon Steel: Versatility for Different Designs

While grain-oriented silicon steel excels in high-efficiency transformers, non-grain oriented silicon steel (NGO) is used for different applications where the directionality of magnetic flux is less critical. NGO silicon steel lacks the specific grain orientation found in GO silicon steel, meaning it is more isotropic in its magnetic properties.

This makes it suitable for transformers that experience fluctuating or multidirectional magnetic fields, such as distribution transformers. Therefore, NGO silicon steel is often used in smaller transformers or those that operate under varying load conditions.

When manufacturing transformer cores, the choice between GO and NGO silicon steel depends largely on the specific needs of the transformer, including its intended use, cost considerations, and desired performance. Both materials have their strengths, and the proper selection can ensure optimal efficiency and longevity.

Benefits of Silicon Steel Transformer Cores: A Path to Sustainable Energy

Silicon steel transformer cores offer several benefits, from high energy efficiency to longevity and durability.

With the ability to minimize energy losses, these cores lead to more efficient transformer operation. This efficiency is critical for reducing operational costs and environmental impact.

Moreover, the versatility of silicon steel, including both grain-oriented and non-grain oriented variants, allows for a wide range of applications, from small-scale transformers to large power units.

Additionally, silicon steel transformer cores are designed to withstand harsh operating conditions, including temperature fluctuations and mechanical stress. Their durability ensures a long service life, reducing the need for frequent replacements.

Applications of Silicon Steel Transformer Cores in Electrical Engineering

Silicon steel transformer cores are widely used in:

Power Transformers (transmission and distribution networks)

Distribution Transformers (local power supply systems)

Instrument Transformers (current and voltage measurement)

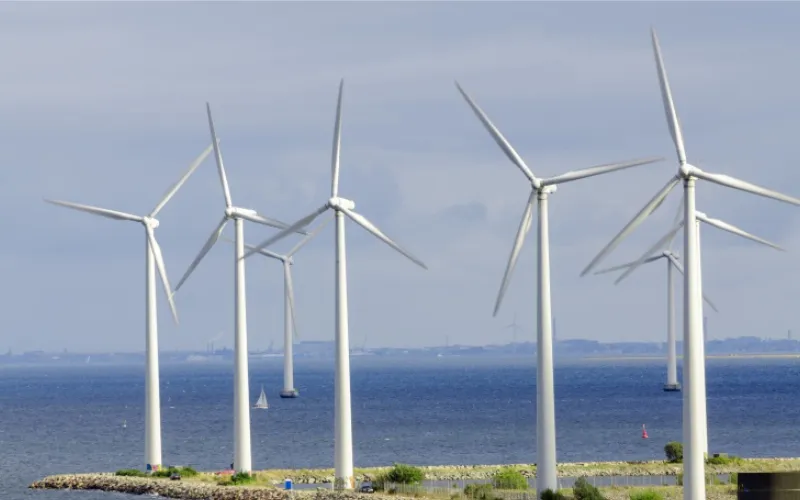

Industrial and Renewable Energy Systems (wind turbines, solar inverters)

Conclusion: Paving the Way for a Brighter, More Efficient Future

Silicon steel transformer cores have been an indispensable part of modern electrical systems, enabling efficient energy transfer and contributing to the longevity of transformers. Their combination of excellent magnetic properties, minimal energy losses, and great durability make them a critical component in ensuring the reliability of electrical grids worldwide. As the demand for efficient and sustainable electrical solutions continues to grow, silicon steel transformer cores will remain a key element in the development of modern electrical infrastructure.
