Top 10 Common Issues with Transformer Cores

Transformers are essential components in electrical power systems, playing a crucial role in voltage regulation, power distribution, and energy conversion. Transformer cores are the indispensable components of these electrical devices, typically made of laminated steel or other magnetic materials, playing a critical role in the device’s performance. While these transformer cores are designed to be highly efficient and reliable, they are not immune to issues that can affect their performance and longevity. Understanding these issues is vital for maintaining the efficiency and reliability of transformers. Explore them now!

1. Magnetic Saturation

One of the most significant issues with transformer cores is magnetic saturation. This phenomenon occurs when the core material reaches its maximum magnetic flux density, causing the core to lose its ability to effectively transfer energy.

This typically happens when the transformer is subjected to excessive voltage or current. When the core saturates, the transformer’s efficiency drops significantly, leading to increased heat generation and potential damage to the windings. In severe cases, core saturation can cause the transformer to fail entirely.

Proper design and material selection are essential to prevent core saturation and ensure that the transformer operates within its rated limits.

2. Hysteresis Loss

Hysteresis loss is another critical concern. It refers to the energy lost due to the lagging of magnetic domains within the core material during the magnetization and demagnetization processes. Each time the magnetic field changes, energy is dissipated in the form of heat, which reduces the overall efficiency of the transformer.

To minimize hysteresis losses, engineers can:

Choose Appropriate Core Materials: Select materials with low hysteresis loss characteristics, such as silicon steel or ferrites.

Optimize Operating Frequency: Design transformers to operate at frequencies that minimize hysteresis losses.

3. Eddy Current Loss

Eddy currents are loops of electrical current that are induced in the core due to varying magnetic fields. These currents can create localized heating within the core, leading to further energy losses and potential overheating. These eddy current losses are primarily caused by two factors: core thickness (thicker cores allow for larger eddy currents to form) and material conductivity ( highly conductive materials are more susceptible to eddy current formation).

To combat eddy current losses, transformer cores are typically constructed using laminated materials, which are designed to restrict the flow of these currents. Besides, these materials also have lower electrical conductivity to minimize eddy current formation.

4. Temperature Rise

Temperature rise within transformer cores can occur due to a combination of hysteresis and eddy current losses. External factors, such as ambient temperature or cooling system inefficiencies, can further exacerbate this issue. Elevated temperatures can lead to the degradation of insulating materials, compromising the performance and reliability of the transformer over time. In some cases, overheating can cause the core to warp or deform, further exacerbating the problem.

Proper thermal management practices, such as adequate ventilation and cooling systems, are essential to mitigate these risks. Also, you can use temperature sensors to monitor core temperatures and take corrective actions when necessary.

5. Mechanical Vibrations and Noise

Transformer cores can produce audible noise and vibrations during operation, especially under high load conditions. This is often caused by magnetostriction, a phenomenon where the core material expands and contracts slightly due to the alternating magnetic field. While some level of noise is normal, excessive vibrations can indicate issues such as loose laminations, improper core assembly, or core saturation. In addition, prolonged vibrations can lead to mechanical wear and tear, potentially compromising the structural integrity of the transformer.

To address mechanical stress and vibration, manufacturers can:

Ensure Proper Mounting: Use robust mounting techniques to secure the transformer and minimize vibrations.

Implement Dampening Solutions: Incorporate vibration dampening materials or designs to reduce the impact of mechanical stress.

6. Core Material Quality

The quality of the core material has a profound impact on transformer performance. Inconsistent magnetic properties or the presence of impurities can lead to inefficient operation and increased losses. It is essential to use high-grade materials that are specifically designed for transformer applications. Regular inspections and quality control during manufacturing can help ensure that cores are produced to the necessary standards. Commonly used materials include:

silicon steel

Amorphous metal

Ferrites

For more details, you can find in the blog: 5 Different Types of Transformer Core Materials Explained

7. Improper Core Design

An improper core design can lead to multiple adverse consequences, such as increased losses, inefficient energy transfer, and mechanical failures. Factors such as core shape, size, and material selection must be carefully considered during the design phase to ensure optimal performance. Also, engaging with experienced engineers and utilizing advanced design software can aid in developing efficient transformer cores.

For more details, you can find in the blog: Optimizing Transformer Core Design for Maximum Efficiency

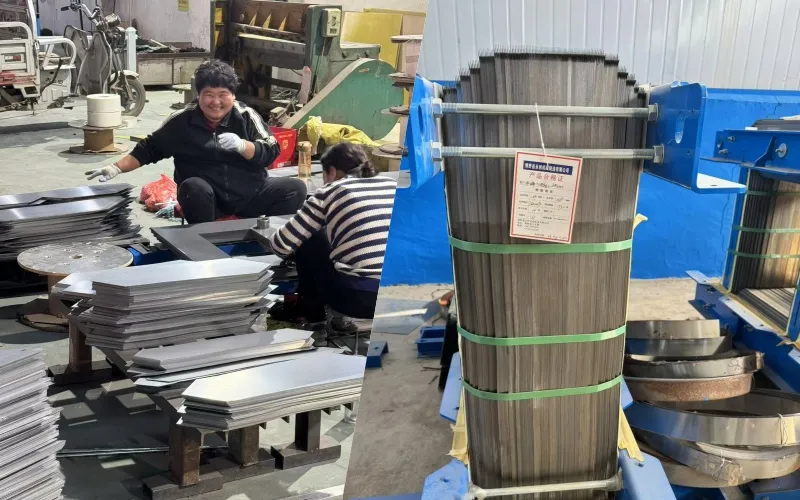

8. Manufacturing Defects

Occasionally, manufacturing defects can compromise the integrity of transformer cores. Issues such as misalignments, improper lamination, and material inconsistencies can lead to increased losses and reduced efficiency. It is essential for manufacturers to adhere to strict quality control measures to minimize the likelihood of defects occurring during production.

9. Aging and Wear

Over time, transformer cores inevitably experience aging effects, which can lead to the deterioration of magnetic properties and mechanical integrity of the materials. This aging process can increase losses and lead to efficiency drops, necessitating careful monitoring and maintenance. Regular assessments can help identify aging effects and allow for timely repairs or replacements.

10. Other Issues

You can also focus your attention on the following issues:

Grounding Fault

Proper grounding of the transformer core is essential to prevent the buildup of static charges and to ensure safe operation. However, improper grounding or insulation failures can lead to core grounding issues, where the core becomes electrically connected to the transformer tank or other components. This can result in circulating currents, increased losses, and potential damage to the core and windings.

Insulation Deterioration

Damage to the insulation of the core can also cause major disasters — short circuits, increased loss, or transformer failure in severe cases. Moisture ingress and prolonged exposure to high temperatures can cause the occurrence of this issue.

Core Corrosion

Exposure to moisture and environmental contaminants can cause the core to corrode, compromising its structural integrity and performance. These corroded cores can be treated by cleaning the affected areas and applying anti-corrosion coatings. In severe cases, damaged laminations may need to be replaced to ensure the core’s reliability.

Conclusion

Transformer cores are critical to the efficient operation of transformers, but they are susceptible to a range of issues that can impact performance and reliability. Magnetic saturation, core losses, mechanical vibrations, temperature rise, material quality, core design, improper manufacturing, and core aging are some of the most common problems that can arise. By understanding these issues and implementing appropriate strategies, engineers can mitigate these challenges and enhance the reliability and efficiency of transformers, ensuring they meet the demands of modern electrical power systems.
